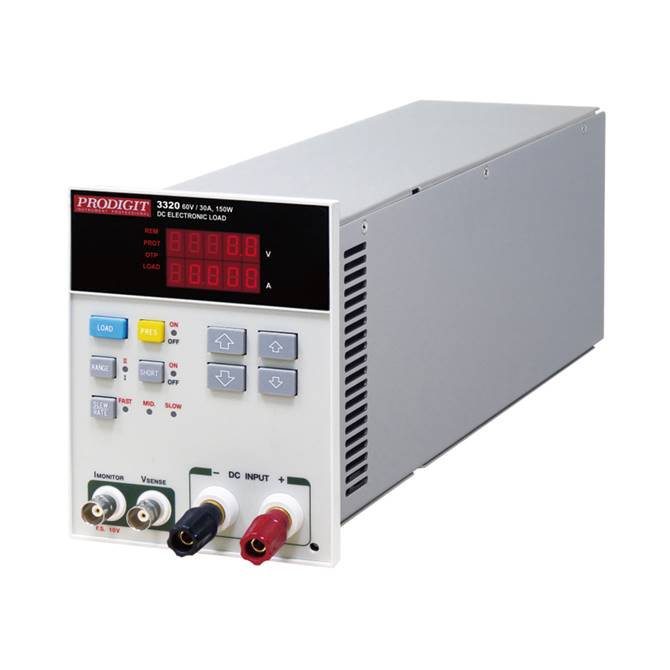

3320 DC Electronic Load 60V, 30A, 150W

Description

l 3320 series module are used with the 3301A 4ch Mainframes and 3302A single channel Mainframe.

l Each 3320 series module has its own control and display panel with constant current operating mode.

l 5 states Store/Recall memory on 3302 and 3301A mainframe which provides load set-up more efficiently.

Features

l Must be configured in

l 3301A¡efour channels mainframe¡f

l 3302A¡esingle channel mainframe¡f

l CC Static, Short Mode

l Dual 4 1/2 V/A Meter on each module

l Current Slew Rate control capability

l 5 Memory Store / Recall on each Module

l Protections against V, W, and ¢J

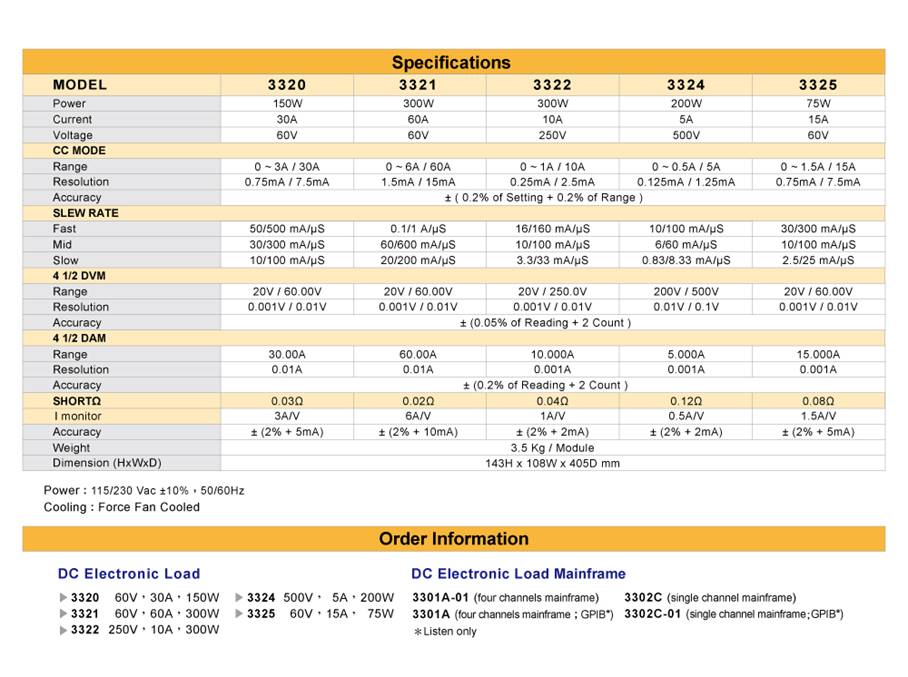

Specifications
